All Tinycal series instruments are dual function: generation/simulation and measurement. Keys on the instrument’s front panel enable configuration for generation of set values in either engineering units or percentages. Panel keys also enable generation in steps that can be timed for 1 to 9 seconds per step, which it memorizes thanks to its 6 configuration keys. Simulation from the instrument —T240 and T250— can be configurated to simulate the sensor response (Pt100 or type of thermocouple selected).

The measurement function is easily selectable with the IN/OUT button, as clearly indicated on the display, which indicates the value to be measured. To prevent possible connection or manipulation errors, the measurement circuit is protected againstshort-circuits and external voltage up to 30 V, guaranteeing the instrument longer service life. The T220 and T225 models of Tinycal family are equiped with an integrated 24-V dc sypply, enabling power supply to the loop from the calibrator (active mode), or volontarily in passive mode.

All the instruments of the Tinycal family offer high precision and high-resolution measurements, which, together with their ease of use, high reliability and convenient transport, as well as reduced weight and small size, make them basic standards in an instrumentation workshop.

667,00

High precision thermometer for multiple temperature probe calibrations and temperature tests. Multiple channels: 6 x Pt100, and 4 thermocouples. It measures electrical quantities (mV, Ω, mA) with corresponding temperature correlations.

Category:

Description

CHARACTERISTICS

  • Temperatura de funcionamiento de o a 50 °C
  • En previsión de posibles errores de conexión o manipulación, el circuito de medición está protegido contra cortocircuitos y tensiones externas hasta 30V.
  • Baterías recargables con gran autonomía.

ADVANTAGES

  • Medición/Generación con una única herramienta
  • Gran precisión
  • Alta resolución

APPLICATIONS

  • Calibración de transmisores de TCS
  • Medición y simulación TCS
  • Testeo de lazos de control de temperatura.

Technical specifications

Operating temperature 0 to 50 ºC

Temperature coefficient 0.003% /ºC

NiMH rechargeable batteries, 14 h automonia

Execution time 16 hours

Battery charger power supply 230 V 50 Hz

LCD display, 41/2 digits, height 10 mm, with blue LED backlight.

Dimensions 83 x 152 x 33 mm

Weight 240 to 300 gr.

Manual or automatic Generation / Simulation

Step time Programmable from 1 to 30 seconds

CE Marking

Warranty 2 years

Operating temperature 0 to 50 °C (32 to 122 ℉)

Generation / Simulation Manual or automatic

Step time Programmable from 1 to 30 seconds

EC label

Warranty 2 years

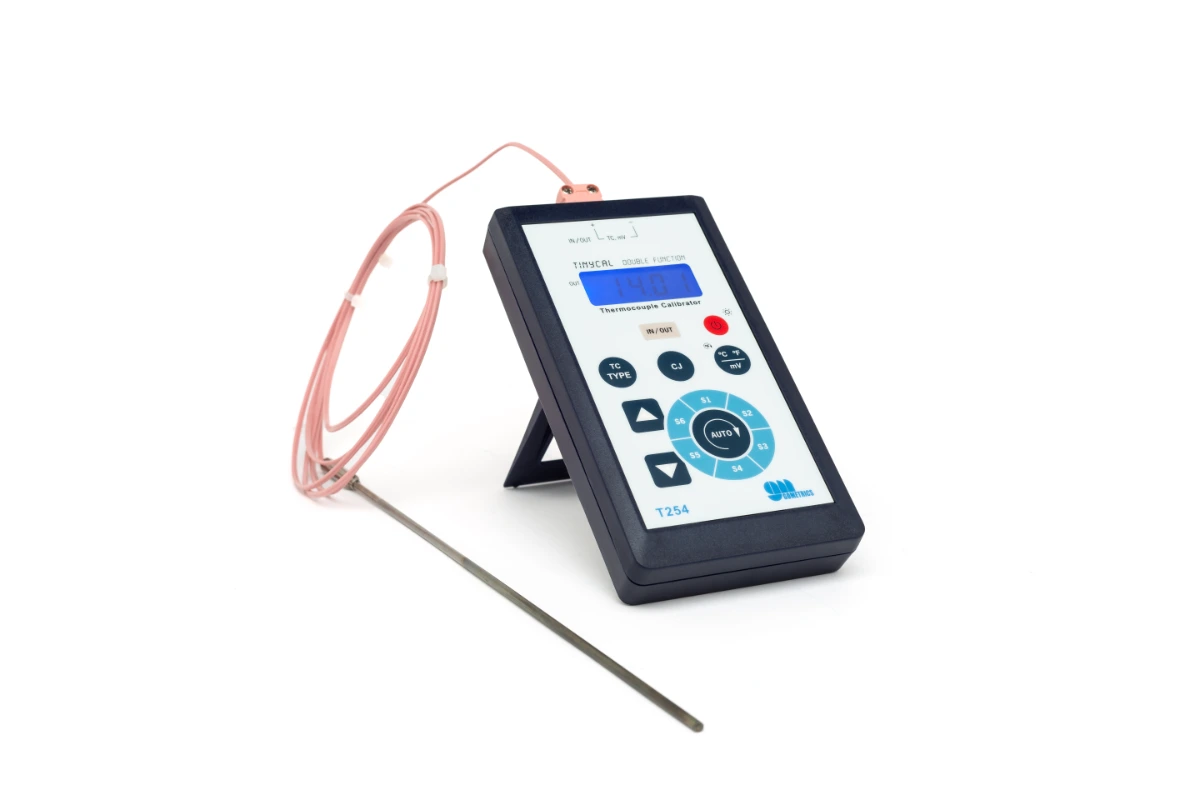

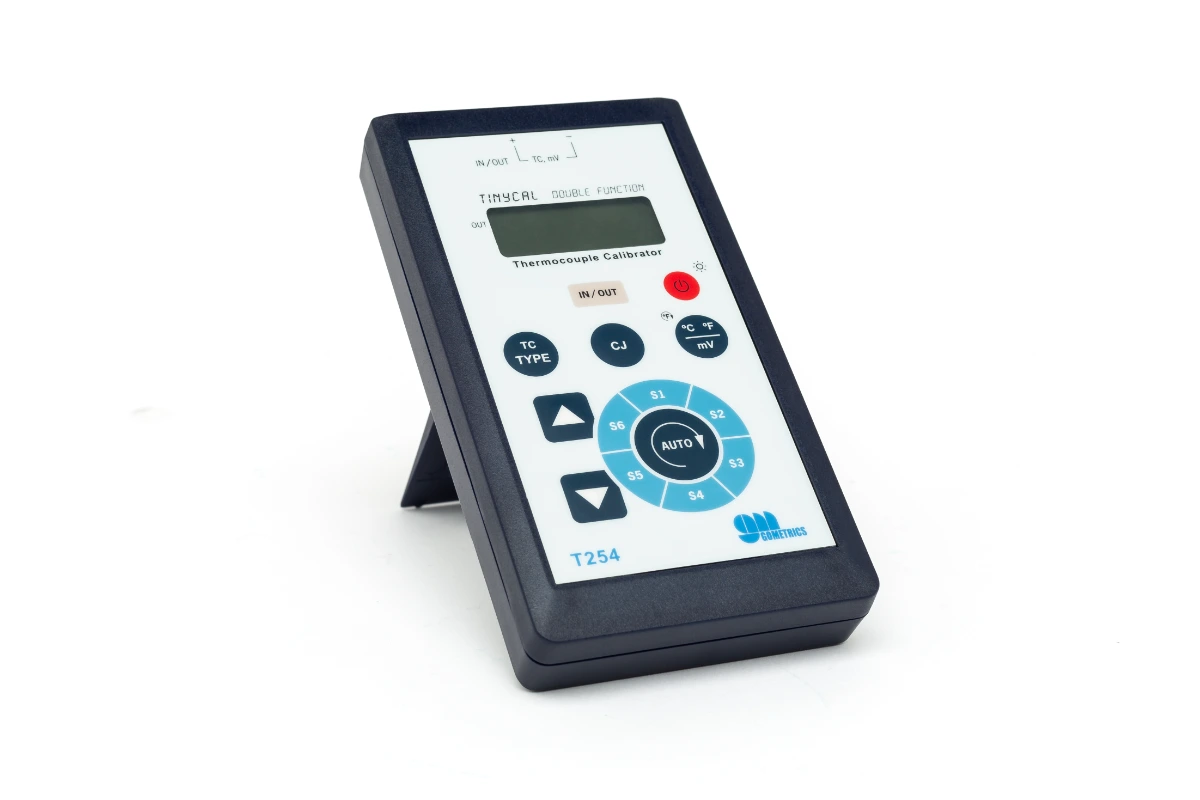

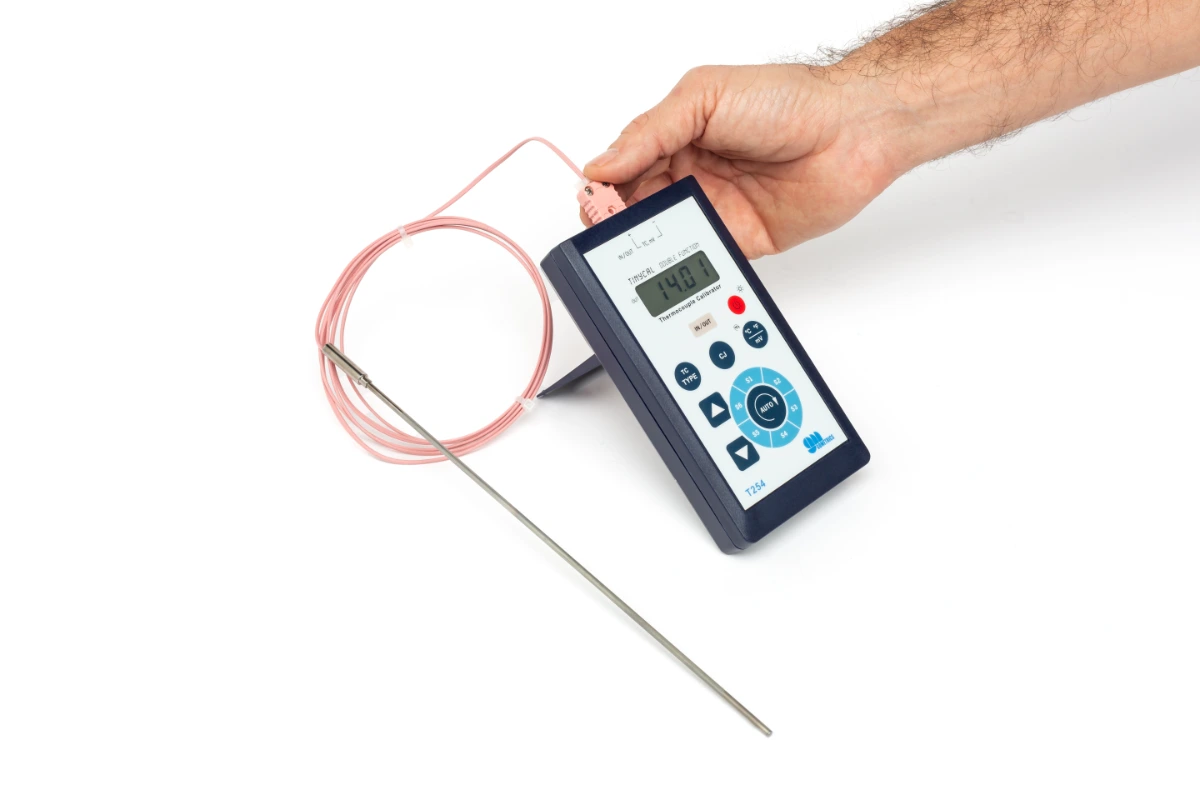

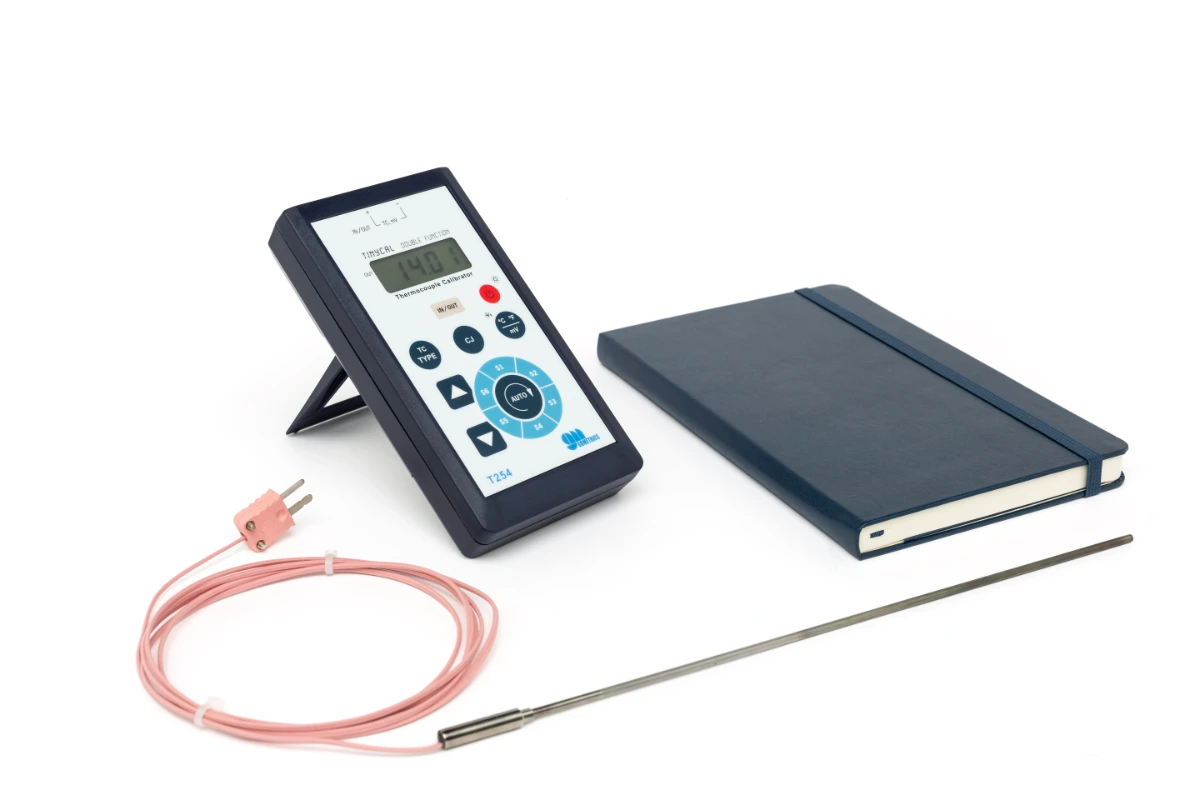

Tinycal T254 Thermocouple calibrator

Beacon TCs detected B, E, J, K, N, R, S

Simulation range 2 years80 to 390 Ohms (-50 to 850 °C) (simulation current is 0, 1 to 2 mA)
-10 to 85 mV (Resolution 900 T/o, OT mV)

Cold junction composition (CJ) 0 to 50 °C, + 0,5°C

Accuracy at 23°C + 3°C ±0, 025% FS

Uncertainty 1 year ±0, 05% FS

Measuring range 2 years 20 to 320 Ohms (-220 to 600 °C) (applied current approx. 1mA)
-10 to 85 mV (Resolution : 0.001 0.01 mV)

Input impedance >10 M

Accuracy at 23°C + 3°C ± 0.025% FS

Uncertainty 1 year ± 0.05% FS

Temperature display °C or ℉ °C or ℉ ℉ °C.

Resolution 0.1 Ohm or 0.1 °C/0.2 °C 0.1 °C or ℉ 0.1 °C or ℉ 0.1 °C

Measurement and generation/simulation function
