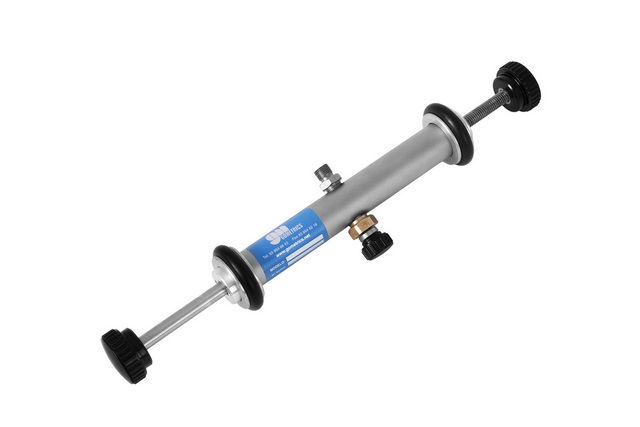

Pressure generation pump BP102G


Pressure generation pump for field calibration of pneumatic instruments, low pressure measuring equipment.

The Gometrics model BP102G manual generation pump is a manual compressor capable of generating up to 10 bar of pressure in closed circuits without volumetric consumption for fine adjustment of the desired pressure.

It is a light and small pump with a purge system to zero the loop and a connection to the instrument to be calibrated.

It has a simple system of pneumatic pressure generation without the need of mains supply, being ideal for calibration operations “in situ” of pneumatic instruments, low pressure measuring equipment, simulation of signals for process ΔP transmitters, pressure switches, valve positioners, pressure gauges, etc.



  • Manual pump
  • Lightweight and small size
  • Simple pressure generation system


  • No mains power supply required
  • It has a purge system
  • Capable of generating up to 10 bar pressure in closed circuits


  • On-site calibration of pneumatic instruments,
  • Calibration of low pressure measuring equipment.
  • Simulation of signals for transmitter processing

Technical specifications

Range Atm. a 10 barg
Size Min. 218 mm and Max. 300 mm
Weight 0,330 kg
Material Chrome-plated steel
Connection Fitting 1/8” BSP M
