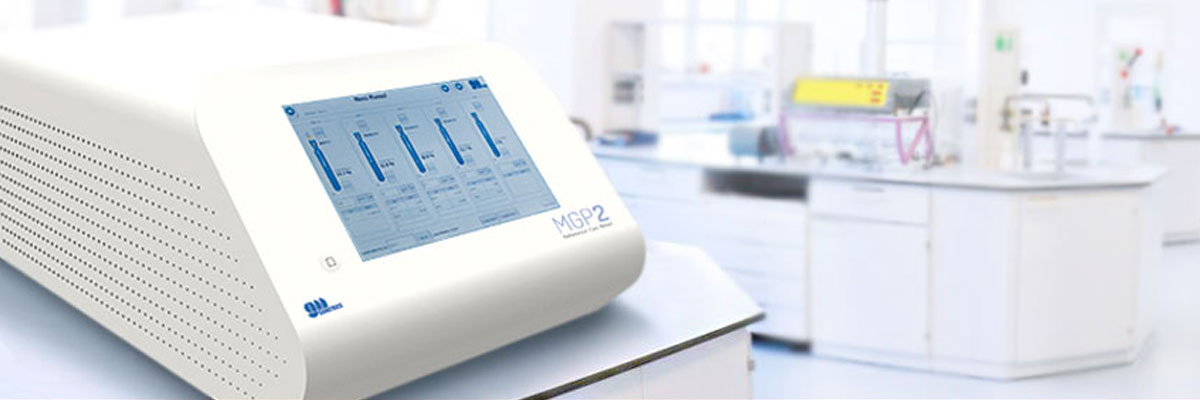

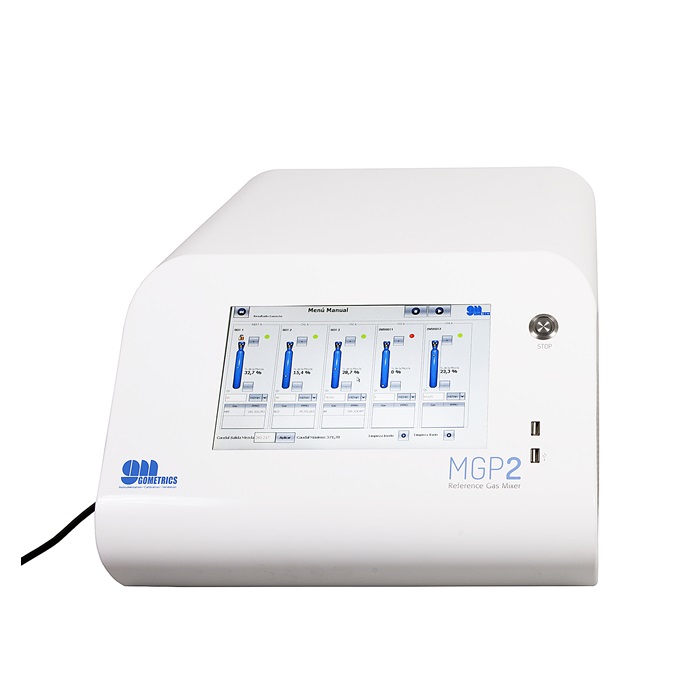

MGP2 laboratory reference gas mixer


MGP2 reference gas mixer allows to blend up to 8 gases. Users can prepare any mixture of gases in matter of seconds thanks to touch screen interface. Precise, ergonomic, safe. Homogeneity of the mixture is guaranteed by a patented method.

There are processes, both in industry and in laboratories, in which the handling of industrial gases is necessary. One of the most common operations is the dilution or mixing of two or more input gases. To carry out these operations, industries or laboratories can be equipped with different more or less complex devices that allow the handling of these gases.

The solution developed by Gometrics allows handling operations to be carried out with a single instrument that is very easy to install and commission. The MGP2 is a device that allows the user to optimally perform the gas mixtures required for his application.

In its design, priority has been given to precision, versatility, ease of use and safety. Special emphasis has also been placed on the user interface to enhance usability and ergonomics.



  • Easy dilution and mixing generation
  • Touch screen
  • Automation of sequences
  • External PC connection possible
  • Reliability and repeatability
  • Safety and durability


  • Preparation of mixtures (binary, ternary, etc.)
  • Calibration of gas detectors and analyzers
  • Linearity studies of gas analyzers
  • Characterization of gas sensors
  • Preparation of controlled atmospheres for analysis
  • Research and development


  • Controllable flow ranges per channel: maximum full scale per channel from 8 sccm to 15 slpm
  • Material in contact: stainless steel AISI-316, Teflon®,
  • Viton®, Kalrez®.
  • Inputs: connection to eight cylinders (up to 16 optional) of different gases and/or different concentrations
  • Mixing: four independent and simultaneous flow control channels for mixing (up to 8 channels optionally available)

Technical specifications

Feed pressure 600 kPa max. (6bar) 250 kPa min. (2.5bar)
Tickets Pattern: connection to eight cylinders (up to 16 optional) of different gases and/or different concentrations

Inert: two gas balance inlets: pure clean gas, dry air, N2 (others user-definable)

Exits One mix output allowing the mixing of four independent channels (mixes of 5 to 8 input channels possible as an option)
Feed gas Configurable gas type, as well as its components
Power supply 88-264 VCA, 50/60 Hz, 130W
Contact material Stainless steel AISI-316, Teflon®, Viton®, Kalrez®.
Mixing generation capacity Allows any combination of working points for activated channels
Controllable flow ranges per channel Maximum scale depths per channel from 8 sccm up to 15 slm (other flow rates on request). Channels can have different scale depths
Maximum output flow rate (mixed) It is given by the sum of the individual flow rates (up to 15 slm).
Accuracy and repeatability per channel Repeatability: <± 0,2% of the reading

Accuracy: <± 0.5% of reading ± 0.1% of E.F. (may be higher depending on gas used)

Connections 1/8″ BSP to Swagelok tube fitting (quick-connect fitting optional). Standard mains power supply socket
Weight 21,5 kg
Dimensions 403 x 263 x 552 mm (width x height x depth)
