827,00€

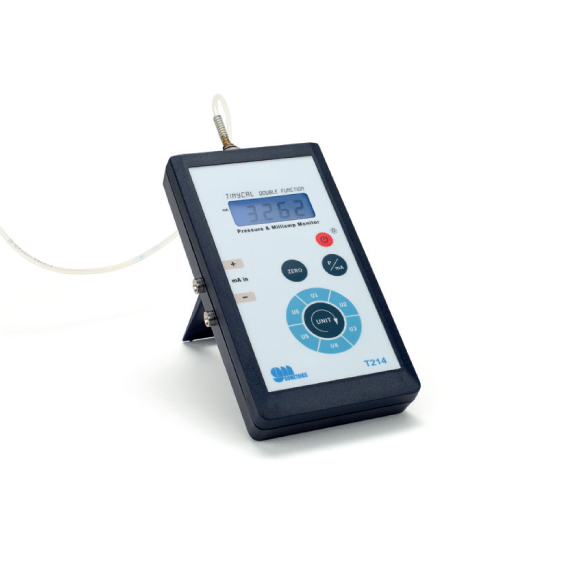

The T214 manometer is a portable microprocessor-based instrument that displays pressure and current (mA) values. The T214 is part of the new generation of Tinycal family of calibrators and simulators developed by Gometrics for the calibration of process instruments.

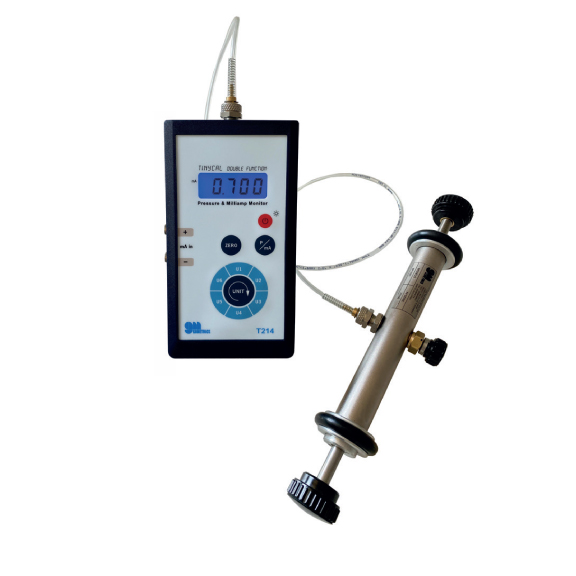

The T214 has been designed to be used alternatively as a pressure gauge and as a milliammeter, acting only on one key of the instrument. This versatility allows you to calibrate electronic pressure transmitters by reading the generated pressure as well as the 4-20mA output signal from the transmitter.
transmitter output signal.
Thanks to an optimal adjustment and linearization of the sensor, the T214 has excellent accuracy and stability over time. The measurement uncertainty is 0.1% per year, suitable for a large number of industrial applications.
The instrument has a built-in pressure sensor made of stainless steel, which gives it a long service life. Its mechanical design withstands a significant overpressure, twice its nominal range.
| Signal | Pressure and current |
| Function | Measurement |

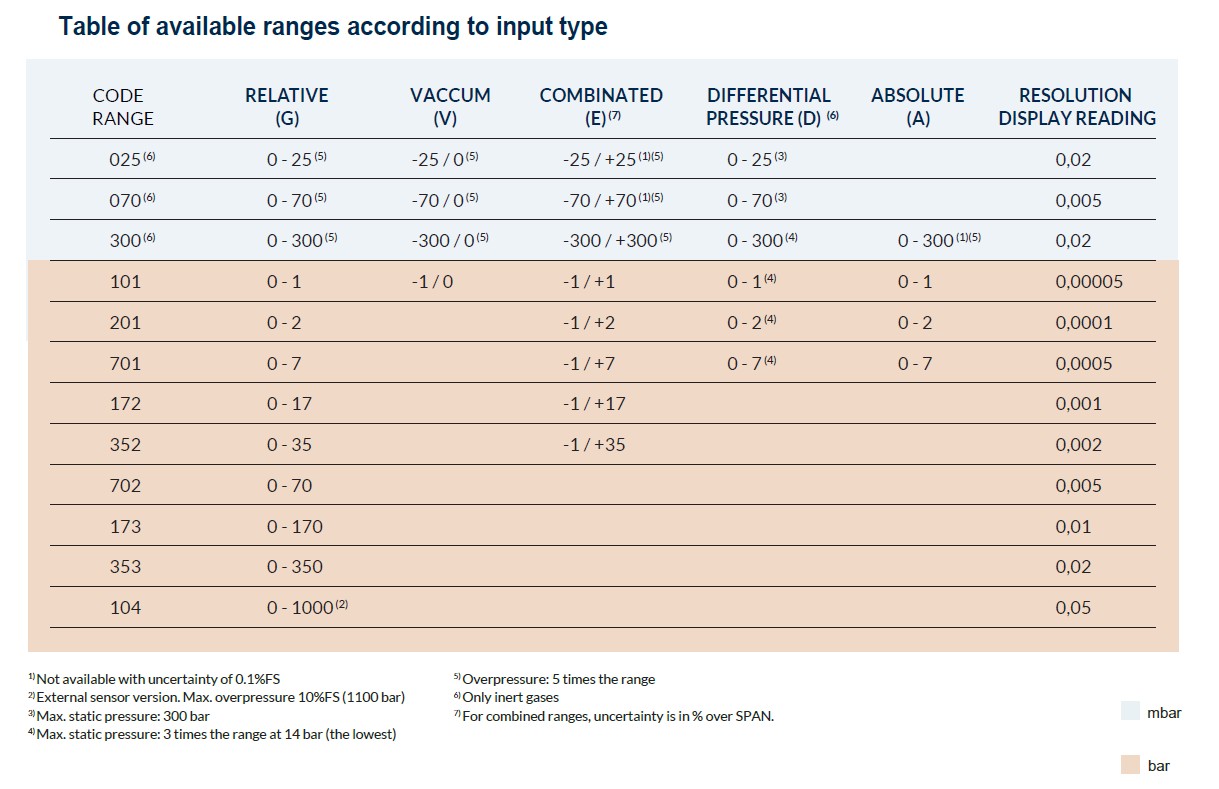

| Pressure range | Min 0-25 mbar max. 0-350 bar, with external sensor 1000 bar |
| Accuracy | 0,10% FS & 0,05% FS |
| Type of pressure | relative, differential, vaccum & absolute |
| Pressure accuracy | 0,05% FS |
| 1-year pressure uncertainty | 0,10% FS |
| Current interval: | ±30mA |
| Current uncertainty: | 0.025% of reading +2μA |
| Resolution | 4½ digits in pressure 1μA/10μA in current |
| Process connection | 1/8″ BSP M internal taper 60° |
| Operating temperature | 0-50 ºC |
| Temperature coefficient
* Includes non-linearity, hysteresis, |
0,02 % FS/ºC < 1bar 0,01 % FS/ºC ≥ 1bar |
| Fluids | Compatible with stainless steel and Buna N for ranges ≥1 bar Air or inert gases for ranges <1 bar and differential pressure |
| Overpressure | 2 times the range for differential pressure equal to the maximum static pressure |
| Maximum static pressure | (only differential pressure) |
| Display | Backlit LCD of 10mm |
| Battery | rechargeable NiMH |
| Power supply | 230V 50Hz charger |
| Dimensions | 83x152x33 mm |
| Weight | 360 g |
| Warranty | 3 years |
| Marked | CE |
| Certification | Standard factory calibration certificate (Optional ENAC) |
| Autonomy | 14 h |
