827,00€
The T214 manometer is a portable microprocessor-based instrument that displays pressure and current (mA) values. The T214 is part of the new generation of Tinycal family of calibrators and simulators developed by Gometrics for the calibration of process instruments.
The T214 has been designed to be used alternatively as a pressure gauge and as a milliammeter, acting only on one key of the instrument. This versatility allows you to calibrate electronic pressure transmitters by reading the generated pressure as well as the 4-20mA output signal from the transmitter.
transmitter output signal.
Thanks to an optimal adjustment and linearization of the sensor, the T214 has excellent accuracy and stability over time. The measurement uncertainty is 0.1% per year, suitable for a large number of industrial applications.
The instrument has a built-in pressure sensor made of stainless steel, which gives it a long service life. Its mechanical design withstands a significant overpressure, twice its nominal range.
Technical Specifications
| Input Signal | pressure and current |
| Function | measurement |
| Pressure range | min. 0 to 25 mbar / max. 0 to 1000 bar |
| Uncertainty* | 0.25 % FS and 0.10 % FS |
| Pressure type | gauge, combined, differential, vacuum and absolute |
| Current range | ± 30 mA |
| Uncertainty* | 0.025 % of reading + 2 μA |

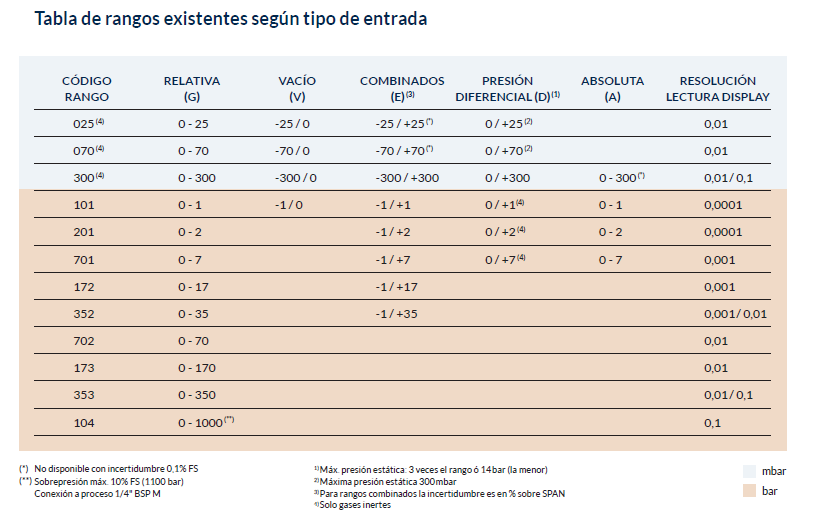

| Resolution | 4 ½ digits in pressure (see table) 1 μA / 10 μA in current |
| Process connection | 1/8″ BSP M internal 60° taper 1/8″ NPT M (optional) 1/4″ BSP M (1000 bar only) |
| Operating temperature | 0 ºC to 50 ºC |
| Relative humidity | 0 % to 95 % (non-condensing) |
| Power Supply | charger 100 to 240 50/60 Hz 0.2 A |
| Autonomy | 20 h |
| Warranty | 3 years (extendable) |
| Certification |
|
| Marking documentation | CE |
*Includes non-linearity, hysteresis, repeatability, thermal drift between 20 °C and 26 °C, and 1-year stability.
