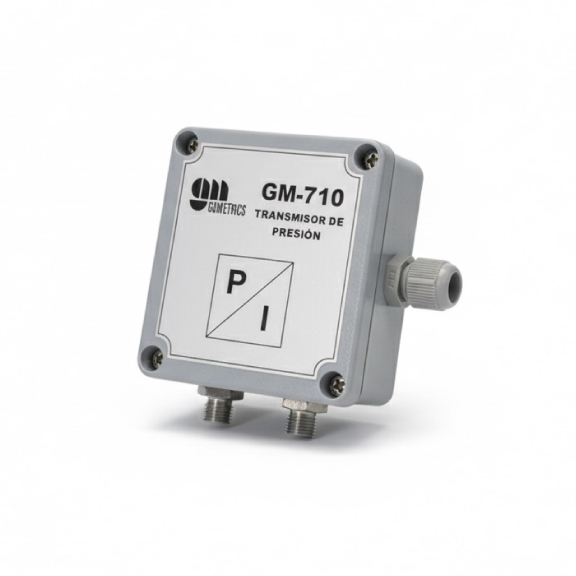

The GM-710 receives a pressure signal and converts it to a 4-20 mA current signal.

The piezoresistive sensor is insulated from the diaphragm. The fluid must be compatible with Stainless Steel AI51 316.

No air is consumed, the maximum pressure being two times the full scale range.



Pressure range table

509,00

The GM-710 converts a pressure signal into a 4-20 mA current signal. The piezoresistive sensor is insulated from the diaphragm. The fluid must compatible with stainless steel. If <1 bar only use air/inert gases. It has IP65 protection.

Category:

Description

Product description

  • Models available at relative, vacuum and absolute pressure
  • Stainless steal sensor (>1bar)

Key features

  • Output signal: 4-20 mA
  • Power supply: 24 Vdc
  • IP65 protection

Applications

  • Converts a pressure input signal into a current output signal (4-20 mA), for outdoor mounting
  • Pressure transmitter for outdoor

Technical specifications

Pressure range table

Accuracy: 0,05% FS

Uncertainty: (0,25% or 0,1% at 24 VdC)

Maximum input pressure: 2x full scale range

Power supply: for max accuracy 24 VdC; operational from 16 to 40 Vdc, varying the maximum impedance of the circuit

Operational temperature: 0 to 50ºC

Temperature effect: 0.02% of the span/ºC  <1bar, 0,01% for P>1bar

Dimensions: 95 x 95 x 55 mm

Protection: IP65
