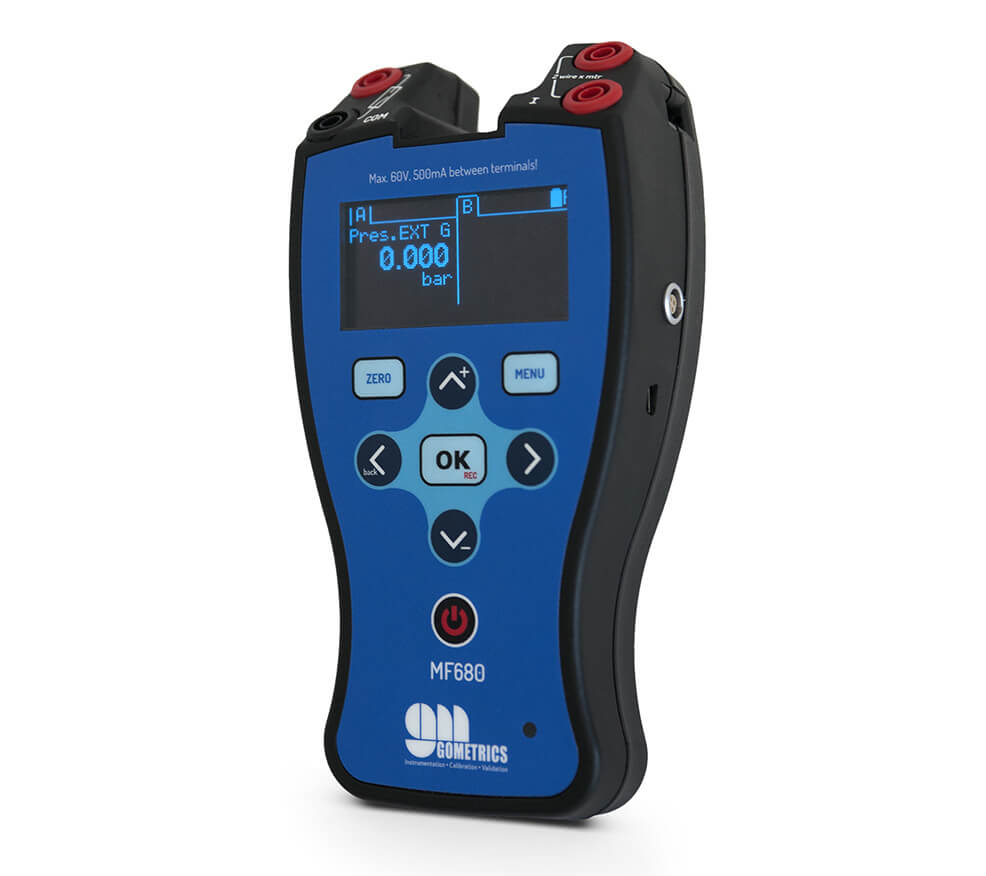

Multifunction calibrator MF680 (Pressure & Electric)

1.721,00€

The MF680 multifunction process calibrator manufactured by Gometrics is an instrument that combines technology, robustness and ease of use. Ideal for field adjustments or calibrations of a wide variety of process instruments, an ideal compromise between performance, dimensions, ease of use and cost.

The MF680 calibrator is a microprocessor-based digital pressure gauge. The instrument is internally equipped with a strain gauge sensor in stainless steel for ranges above 1 bar.

The new MF680 can also measure or generate current simultaneously, the indication of both variables on the screen saves time, while the fact of being able to work in percentage values for the input and output signals, allows to minimize the possibilities of error in the calibration of pressure transmitters.



Download catalogue



Pressure range table

Cat: , ,

Ideal for field adjustments or calibrations of a wide variety of process instruments, an ideal compromise between performance, dimensions, ease of use and cost.

Product description

  • Multifunction process calibrator
  • Versatile and easy to handle
  • Intuitive, multi-language menu for easy access to pressure, measurement or current and voltage measurement functions

Key features

  • Calibration of pressure gauges and electrical signals
  • Multi-function capability to calibrate different instruments: digital indicators, manometers, contact type pressure alarms and pressure or electrical transmitters

Applications

  • Double reading: pressure and current on the same screen
  • Active or passive display (with or without 24 Vdc source) configurable from the calibrator itself
  • Data logger for recording and storing data

Uncertainty pressure: 0,25% FS – 0,10% FS – 0,05% FS

Pressure: Internal sensor range: Min. 0-25 mbar – Max. 0-350 bar

Pressure: External sensor range: Min. 0-25 mbar – Max. 0-1000 bar

Resolution: Graphical display

Process fitting: 1/8 “BSP M internal tapered 60º.

Leak test: Yes

Contact test: Yes

Barometric sensor: Optional

Certification: Calibration certificate ENAC

Uncertainty electrical signals: 0,025% FS

Electrical signals range reading range mA: 0 – 55 mA with external FA

Electrical signals range reading range mV: 0 – 200 mV

Electrical signals reading range V: 0 – 50 VDC

F. A. 24 Vcc internal: Yes

Simultaneous reading: Yes

Error indication %: Yes

Generation mA: 0 – 25 mA

Generation mV: 0 – 200 mV

Tension generation: 0 – 10 VDC

After-sales service: Yes

Size Length: 185 mm – Width: 97 mm – Height: 52 mm

Weight: 500 g

Batteries: Rechargeable NiMH

Autonomy (typical): 12 horas

Charger: Yes

CE Marking: Yes

Warranty: 2 years

  • Product configuration and extras
