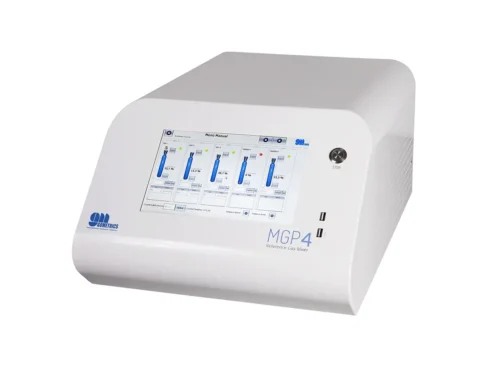

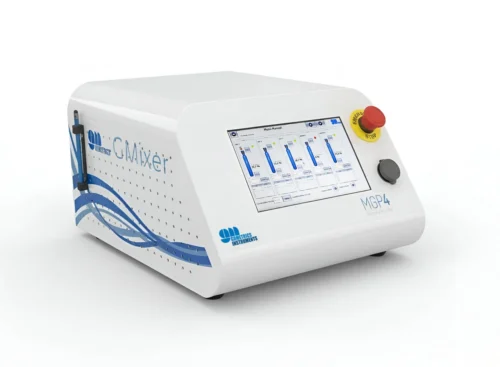

MGP4 is a gas mixer from the MGP family for laboratories that require high-precision gas mixing in their industrial processes.
The MGP4 is a gas mixer from the MGP family for laboratories that require high-precision gas mixing in their industrial processes.
It mixes up to 8 different gases quickly, safely, and uniformly, all from an intuitive 10″ touchscreen.
The MGP4 incorporates high-performance mass flow controllers capable of ±1% accuracy and ±0.25% repeatability on each active channel.
Compatible with a wide variety of gases such as NO, SO₂, NO₂, CO, CO₂, O₂, N₂, H₂S, NH₃, and more (with an oxidant option when required), it adapts to the most demanding calibration or atmosphere simulation challenges.
Homogeneity is guaranteed thanks to a patented mixing method that ensures perfect gas distribution, even in advanced configurations.
| Feed pressure | 60 bar abs |
| Feed gas | Configurable gas type and components |
| Power supply | 100-260 VCA, 50/60 Hz, 120W |
| Contact material | AISI-316 stainless steel and Buna-N and/or Viton O-rings |
| Mixing generation capacity | Allows any combination of working points for activated channels |
| Controllable flow ranges per channel | Maximum scale depths per channel from 8 sccm up to 15 slm (other flow rates on request). Channels can have different scale depths |
| Maximum output flow rate (mixed) | It is given by the sum of the individual flow rates (up to 15 slm). |
| Accuracy and repeatability per channel | Repeatability: ± 0,25% of the reading
Accuracy: ± 1% of reading (± 20% to 100% of full scale) * |
| Connections | 1/4” or 1/8” BSP Swagelok® (quick connector optional). Max. total output flow rate: determined by mass flow meters |
| Weight | 21 kg |
| Dimensions | 406 x 265 x 554 mm (width x height x depth) |
| Certificates | Traceable certificate under internal procedure and ENAC (optional) |
| Warranty | 1 year |
