683,00€

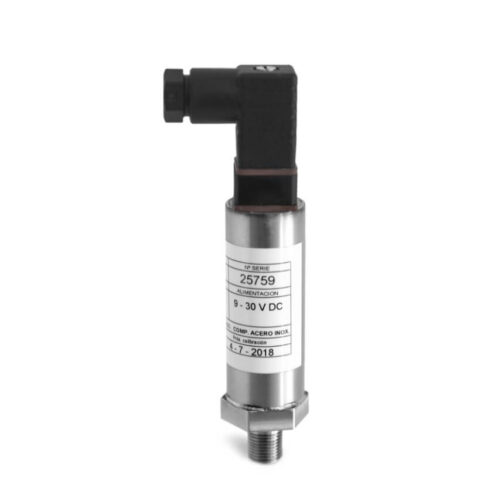

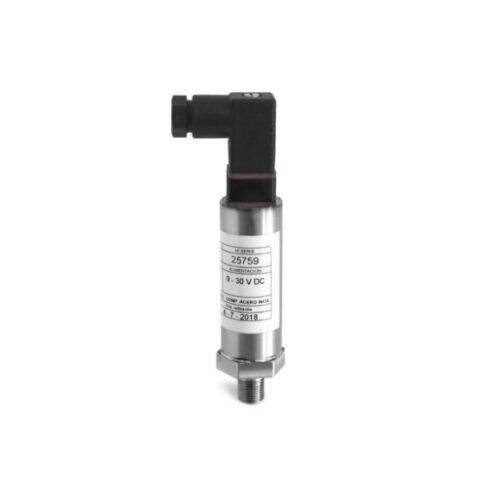

GM810 pressure transmitters designed for precision applications in the process instrumentation industry or machine design engineering. Accept any type of fluid that are compatible with the construction materials (316 stainless steel).
The GM810 series brings together a range of pressure transmitters designed and manufactured by Gometrics to cover precision applications in the process instrumentation or machine design engineering industry.
The transmitter consists of a piezoresistive pressure transducer integrated in a cylindrical stainless steel block that also contains a converter card that provides an electronic output signal proportional to the pressure input signal.
The instrument accepts any type of fluid compatible with the materials of construction, 316 stainless steel.
The GM810 pressure transmitter is adjustable via a USB adapter cable and PC application provided free of charge.
| Technical data | |
| Pressure range | Min: 0 – 25mbar and Max: 0 – 1000bar |
| Uncertainty* at 1 year | 0.20% FS (*Includes non-linearity, hysteresis, repeatability, thermal drift between 20 and 26ºC and 1-year stability.) |
| Exit sign | 4 – 20mA |
| Output signal limitation | 25mA |
| Process connection | 1/4” GAS M |
| Protection | IP65 |
| Vibration resistance | 3g |
| Electric connection | Connector DIN EN 175 301-803-C |
| Material in contact | AISI 316 |
| Operational temperature |
|
| Temperature effect |
|
| Fluids |
|
| Overpressure | 2 times the range |
| Feeding | 4 Vdc, operating between 9Vdc and 30Vdc |
| Accuracy | 0.1% FS |
| Dimensions | Length = 100mm and Diameter = 22mm |
| Weight | 150 grams |
| Calibration | Allows zero and span adjustment via GM810-USB cable and PC software |
| Security | The polarity of the transmitter is protected so that the electronics are not damaged in the event of a connection error |
| Warranty | 2 years |
