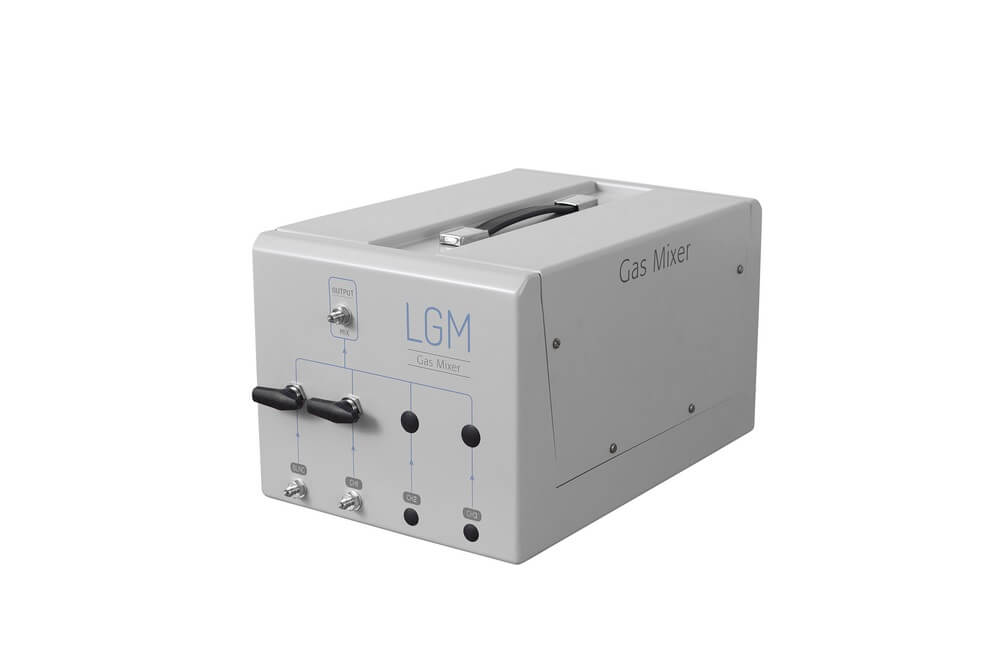

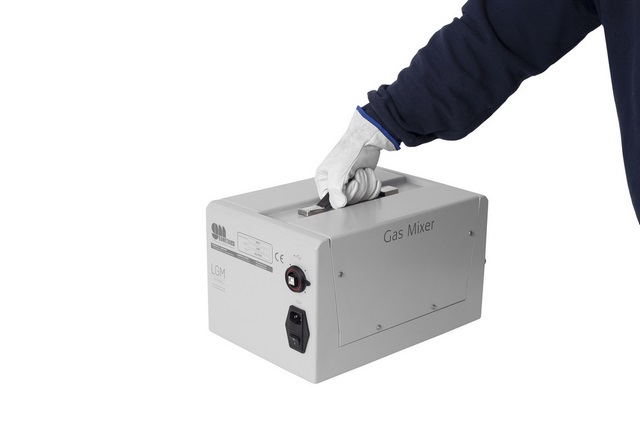

The LGM mixer designed by Gometrics takes a balance gas input and up to 3 standard gases. It comes with an optional battery and a suction hand grip for field use and has an internal pressure sensor to monitor the output pressure of the mixture at any moment. The homogeneity of the mixture is guaranteed by a patented mixing method.

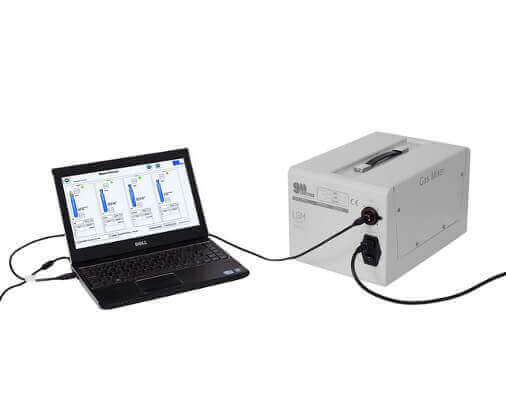

The device allows the user to mix gases in the most suitable form for the application. The instrument can be delivered blind and without keyboard (when operating from PC) or with a simple human-machine interface to allow greater autonomy in field applications.

The LGM incorporates state of the art mass flow control technology.



Download catalogue

Gometrics Lean Gas Mixer takes a balance gas input and up to 3 standard gases. Can be delivered with no display and is operated from a PC. Battery option and hand grip for field use.

Categories: ,

Description

Product description

  • Controllable flow ranges per channel: scale readings maximum of 8 sccm up to 20 slpm
  • Materials in contact: Stainless steel AISI-316, Teflón®, Viton®, Kalrez®
  • Standard: connection up to 4 bottles of different gases and concentration
  • Configuration and control software in PC

Key features

  • Accuracy
  • Versatility
  • Ease of use
  • Portable
  • Fast response
  • Easy creation of mixtures

Applications

  • Preparation of gas blends (binary, ternary)
  • Calibration of gas detectors and gas analysers
  • Linearity studies of gas analysers
  • Gas sensor characterization
  • Preparation of controlled atmospheres through analysis
  • Research and development

Technical specifications

Working maximum pressure: Consult

Nominal power supply pressure: 1 MPa max (10 bar) – 250 kPa min (2,5 bar)

Input: 2 standard channels simultaneously active (3 or 4 optional)

Supply gas: Configurable gas type, configurable components

Power supply: 100-260 VCA, 100W, 50/60 Hz

Materials in contact:

Stainless steel AISI-316, Teflón®, Viton®, Kalrez®

Mass flow

Use of mass flow controllers of medium/high performance.
The standard version is delivered with a total of 2 mass flows (1 for balance gas and 1 for reference gas)

Scalable capacity

Maximum output flow (mix): Up to 20 slpm (air) depending on configuration

Accuracy and repeatability per channel: +/-0.5% reading +/- 0.1% F.E.

Connections: a 1/4” or 1/8” NPT Swagelok®
Power supply: standard socket

Weight: 10 kg (approx.)

Dimensions: 250 mm x 210 mm x 370 mm (w x h x d)
