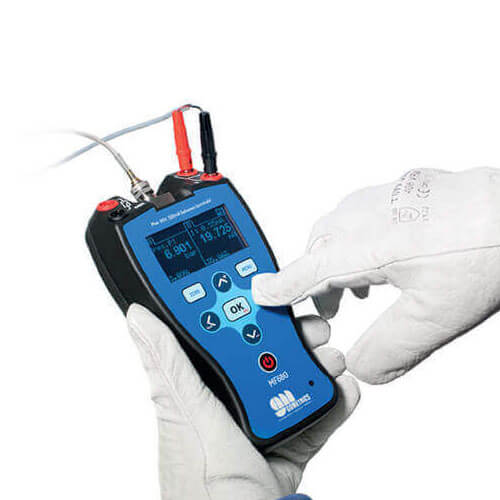

The MF680 multifunction process calibrator manufactured by Gometrics is an instrument that combines technology, robustness and ease of use. Ideal for field adjustments or calibrations of a wide variety of process instruments, an ideal compromise between performance, dimensions, ease of use and cost.

The MF680 calibrator is a microprocessor-based digital pressure gauge. The instrument is equipped internally with a strain gauge sensor in stainless steel for ranges above 1 bar.

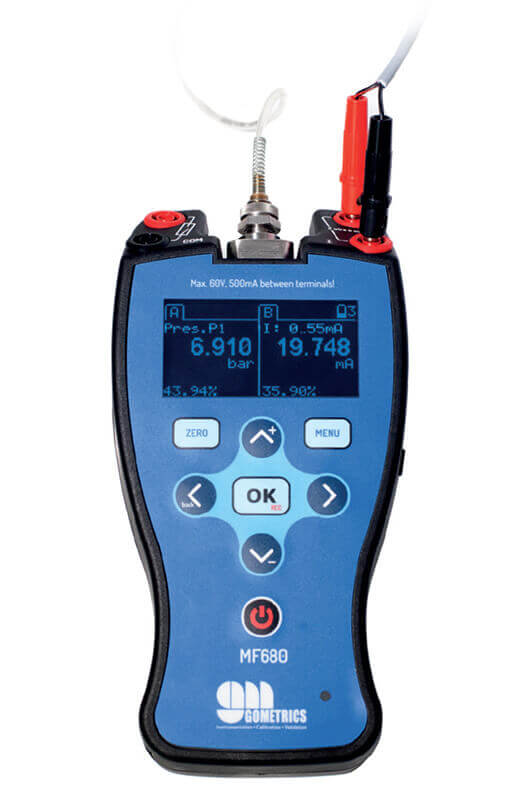

The new MF680 can also measure or generate current simultaneously. The indication of both variables on the display saves time, while the possibility to work in percentage values for input and output signals reduces the risk of error in the calibration of pressure transmitters.





Download catalogue

856,00

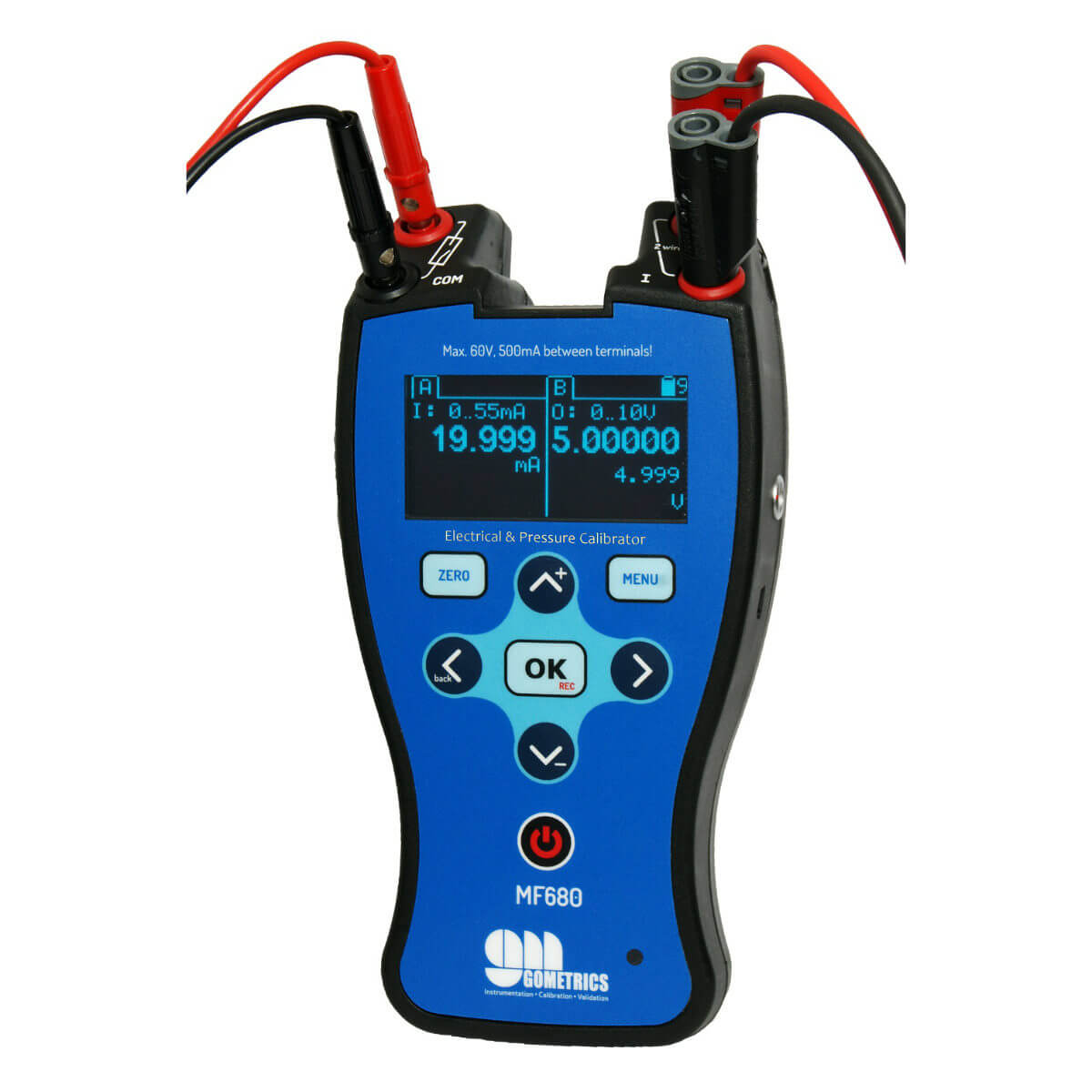

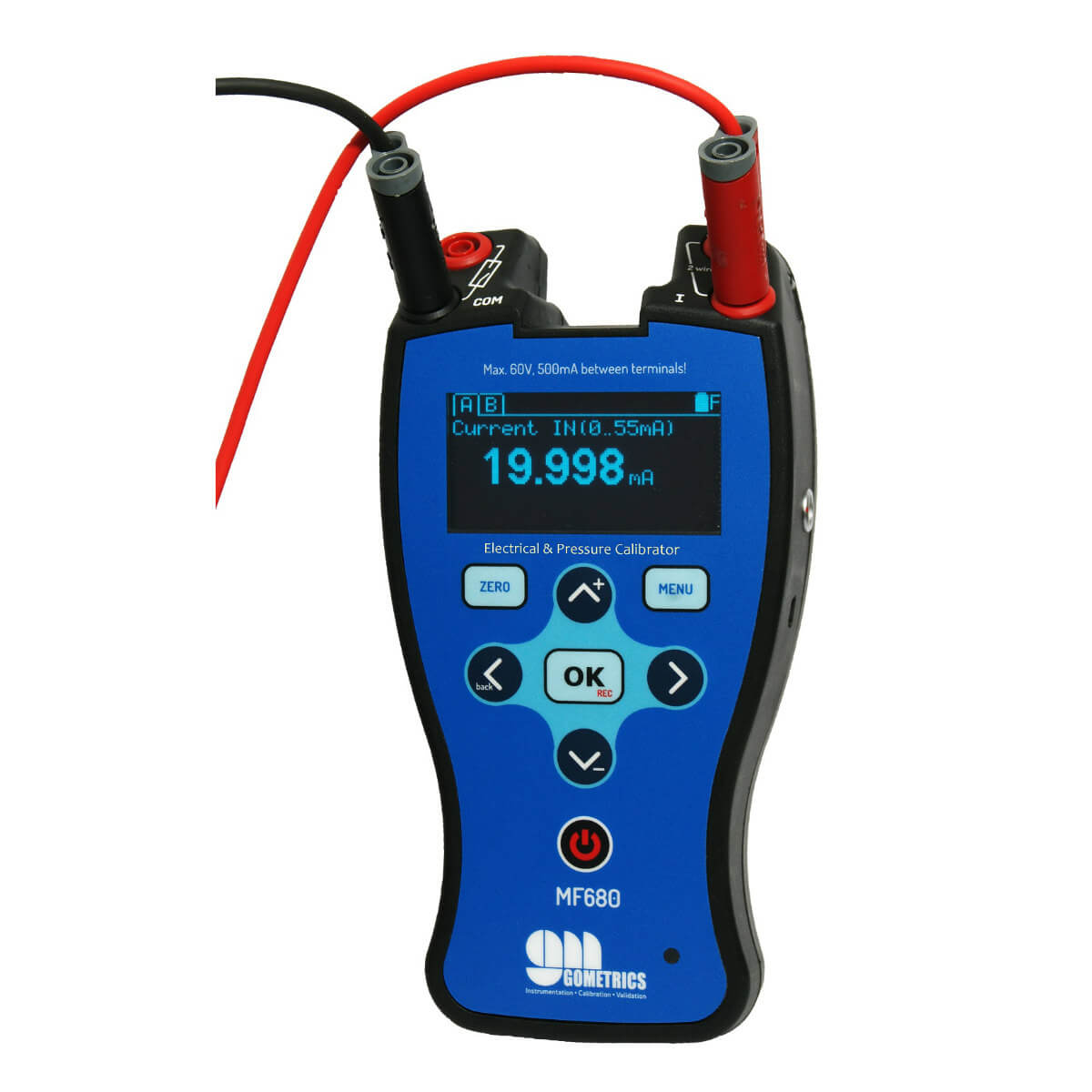

The MF680E process calibrator is an instrument that combines technology, robustness and ease of use. Ideal for field adjustments or calibrations of a wide variety of process instruments.

Categories: ,

Description

Product description

  • It is a multifunction process calibrator
  • Versatile and easy to handle
  • Intuitive, multi-language menu for easy access to pressure, measurement or current and voltage measurement functions.

Key features

  • Double reading: pressure and current on the same screen,
  • Active or passive display (with or without 24 Vdc source) configurable from the calibrator itself,
  • Data logger for recording and storing data.

Applications

  • Calibration of pressure gauges and electrical signals
  • Multi-function capability to calibrate different instruments: digital indicators, manometers, contact type pressure alarms and pressure or electrical transmitters.

Technical specifications

Resolution: Graphical display

Process fitting: 1/8 “BSP M internal tapered 60º.

Leak test: Yes

Contact test: Yes

Certification: Calibration certificate ENAC

Uncertainty electrical signals: 0,025% FS

Electrical signals range reading range mA: 0 – 55 mA with external FA

Electrical signals range reading range mV: 0 – 200 mV

Electrical signals reading range V: 0 – 50 Vdc

F.A. 24 Vcc internal : Yes

Simultaneous reading: Yes

Error indication %: Yes

Generation mA: 0 – 25 mA

Generation mV: 0 – 200 mV

Tension generation: 0 – 10 VDC

After-sales service: Yes

Size: Length: 185 mm – Width: 97 mm – Height: 52 mm

Weight: 500 g

Batteries Rechargeable: NiMH

Autonomy (typical): 12 hours

Charger: Yes

CE Marking: Yes

Warranty: 2 years

With the MF680E calibration is now in your hands

The MF680 electric process calibrator manufactured by Gometrics is an instrument that combines technology, robustness and ease of use. Ideal for field adjustments or calibrations of a wide variety of process instruments, an ideal compromise between performance, dimensions, ease of use and cost.

The MF680E calibrator is a microprocessor-based digital pressure gauge. The instrument is internally equipped with a strain gauge sensor in stainless steel
